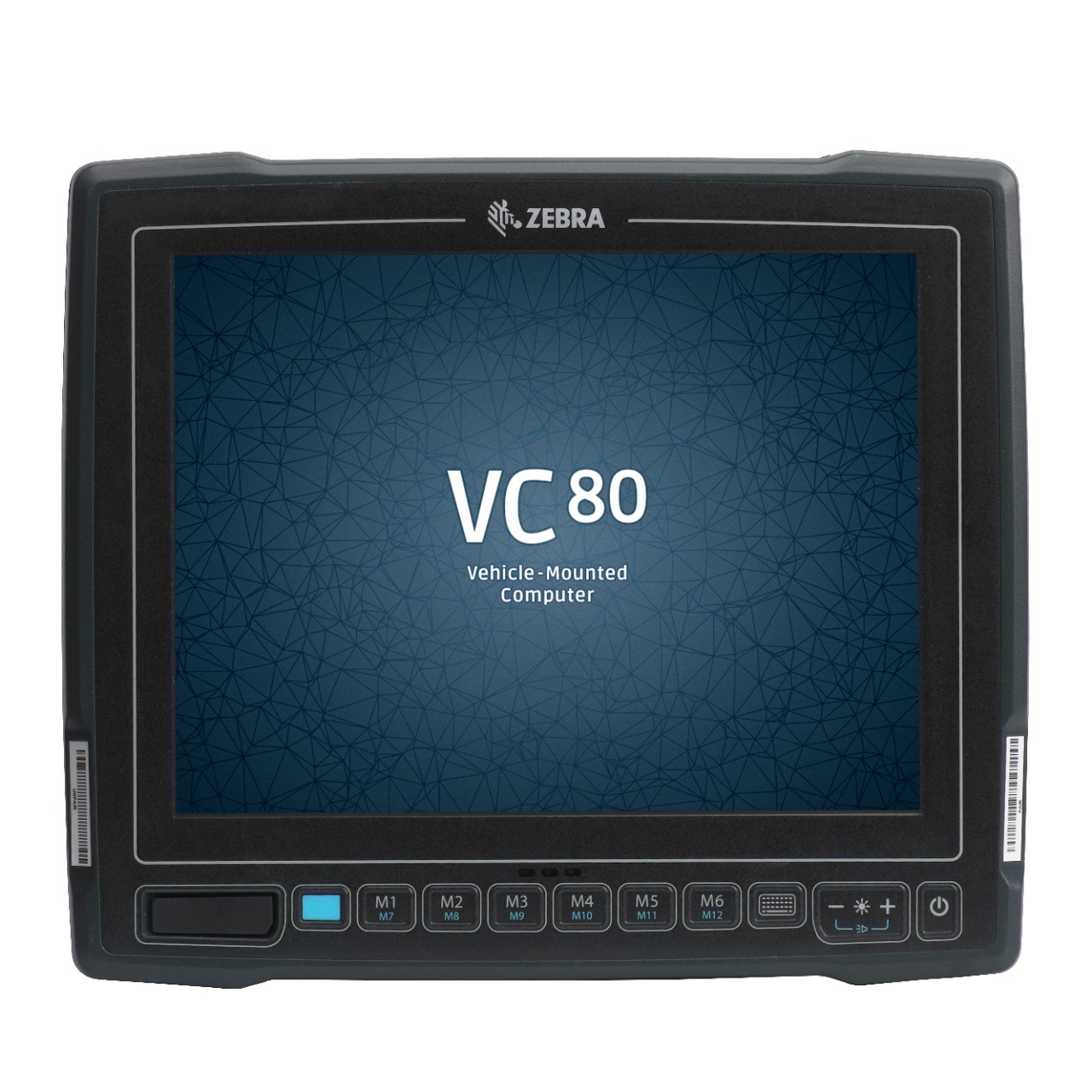

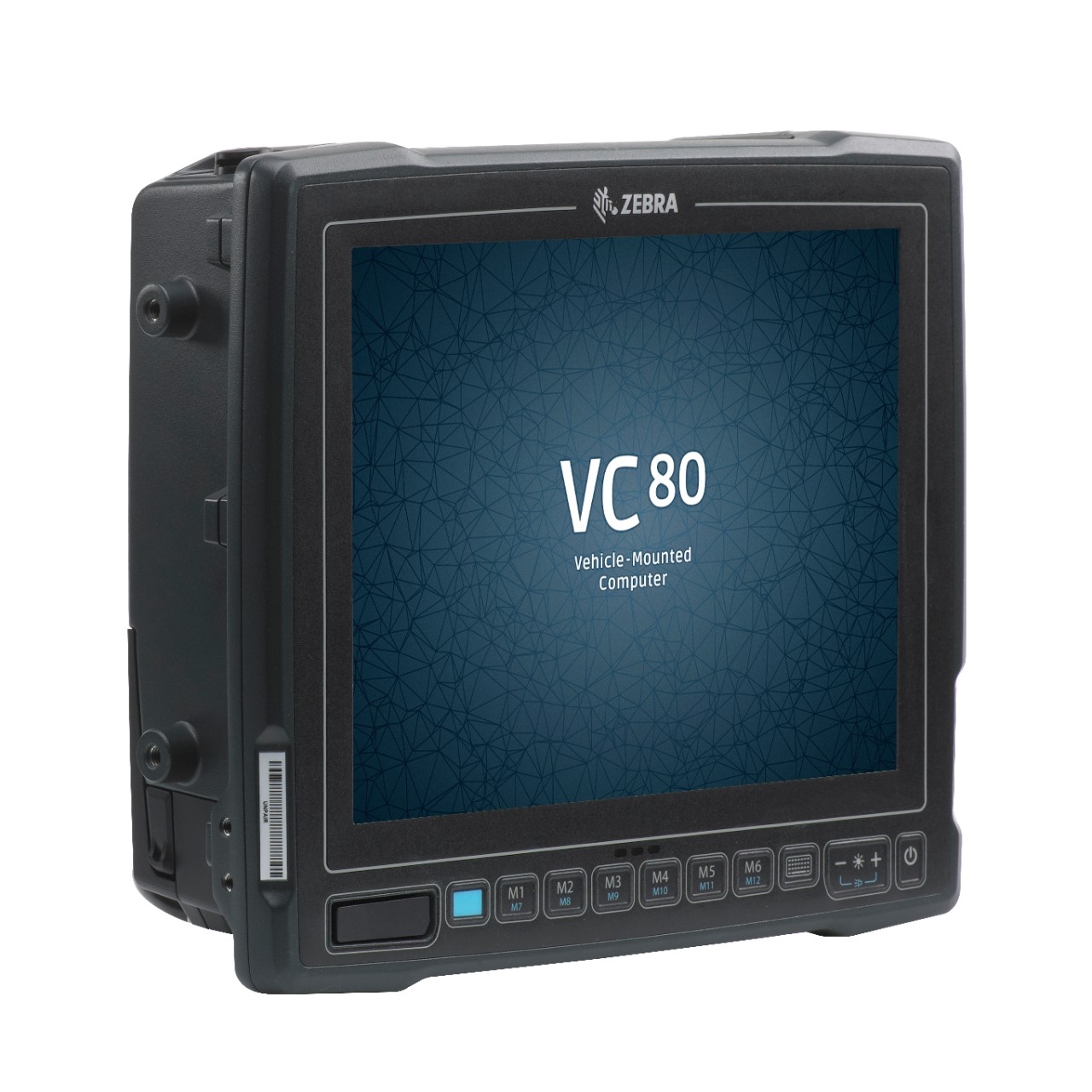

Zebra VC80x
With the VC80x, you can easily migrate your material handling vehicles to the next generation
platform for warehouse mobility. Based on Android, the VC80x delivers a well-proven mobility
platform with guaranteed security support you can count on.
You can migrate from Windows to Android without changing the experience you have in place
today — no re-training, re-configuration, or development is required. Designed for the

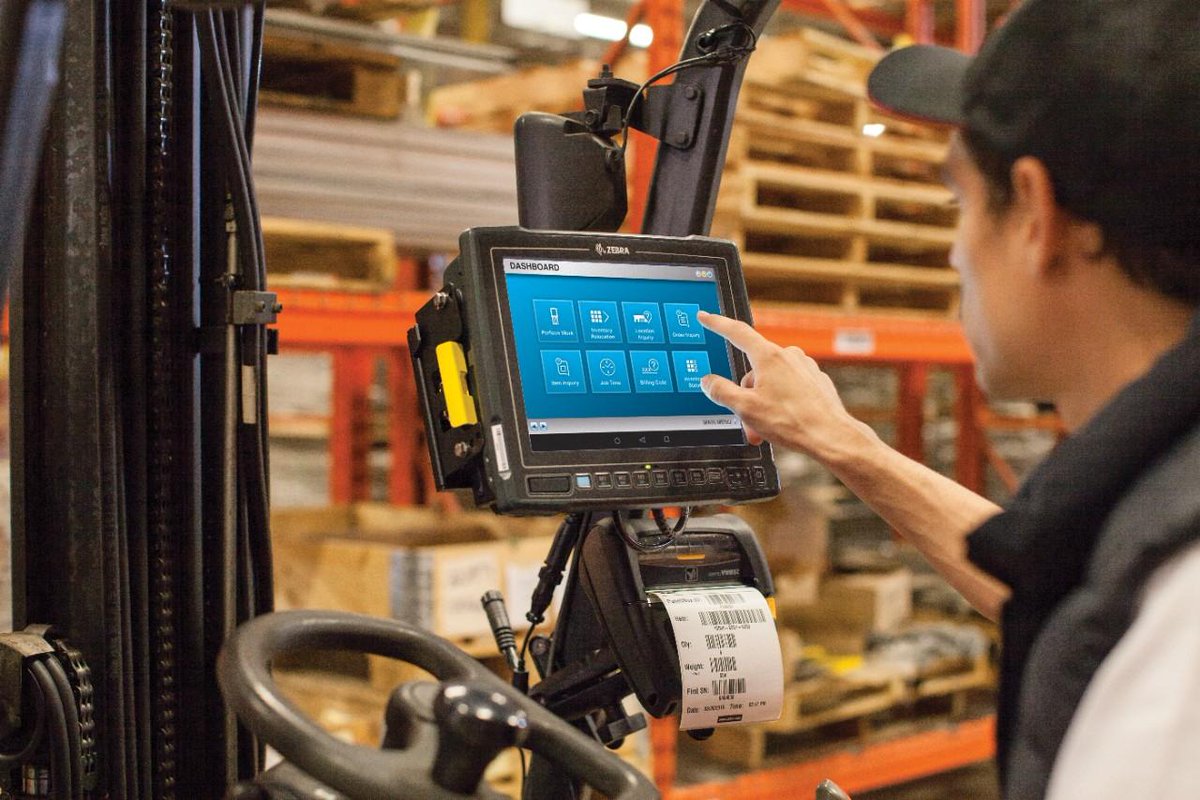

most extreme environments, the VC80x can go everywhere your vehicle operators need to
go — inside the warehouse, out in the yard, on the loading dock and even in the freezer.
And only Zebra fortifies Android with powerful Mobility DNA features to accelerate every
aspect of the warehouse, from goods in to ship out. The VC80x — ultra-rugged, Android-powered
for a smarter warehouse.
VC80x Freezer (10-Inch/ Android N AOSP/ Standard Display)
10-Inch (1024 x 768), Freezer (-30 - +50 C, Condensing Environments),
Standard Display, Resistive Touch Screen, APQ 8056 CPU, 4 GB RAM,
32 GB MMC (pSLC), Android N AOSP, Ivanti Velocity, Basic IO (2 USB,
2 RS232, Speaker/Mic), ROW Version.
Mfr Part # VC80X-10FSRAABBA-I
VC80x Standard (10-Inch/ Android N AOSP/ Standard Display)
10-Inch (1024 x 768), Standard (-30 - +50 C, Non-Condensing Environments),
Standard Display, Resistive Touch Screen, APQ 8056 CPU, 4 GB RAM,
32 GB MMC (pSLC), Android N AOSP, Ivanti Velocity, Basic IO (2 USB,
2 RS232, Speaker/Mic), ROW Version.
Mfr Part # VC80X-10SSRAABBA-I
VC80x Standard (10-Inch/ Android N AOSP/ Standard Display)
10-Inch (1024 x 768), Standard (-30 - +50 C, Non-Condensing Environments),
Standard Display, Resistive Touch Screen, APQ 8056 CPU, 4 GB RAM,
32 GB MMC (pSLC), Android N AOSP, Ivanti Velocity, Basic IO (2 USB,
2 RS232, Speaker/Mic), ROW Version.
Mfr Part # VC80X-10SSRAAABA-I
VC80x Freezer (10-Inch/ Android N AOSP/ Outdoor Display)
10-Inch (1024 x 768), Standard (-30 - +50 C, Non-Condensing Environments), Outdoor Display, Resistive Touch Screen, APQ 8056 CPU, 4 GB RAM, 32 GB MMC (pSLC), Android N AOSP, Ivanti Velocity, Basic IO (2 USB, 2 RS232, Speaker/Mic), ROW Version.
Mfr Part # VC80X-10SORAABBA-I
Can’t find the correct specification?
Want more than one?
Call our friendly and knowledgeable team who will guide you through the
selection process.
*Fluctuations in exchange rates can affect purchase price - please call for
latest pricing.
ANTENNAS
20667-002 - 802.11 b/g Antenna
Whip Antenna (Stubby) - 2.4Ghz only - 802.11b/g - 2.4GHz 2dBi - RPSMA
connector - Magnetic Mount. Used when the vehicle computer is used
in indoor/outdoor areas where an externally mounted antenna is needed
for better coverage
AR1000 - SMA Reverse Polarity Adapter
Right Angle SMA reverse polarity plug-jack Adapter
AN2010 - Dual Band Antenna
Antenna, dual band, 802.11 a/b/g/n, 2 dBi, RPSMA connector, magnetic
mount, 2.9m
AN2020 - 2.4 GHz Antenna
Antenna, 2.4 GHz, 802.11 b/g, 5 dBi, RPSMA connector, magnetic mount,
2.9m
AN2030 - Dual Band Whip Antenna
Whip antenna (stubby), dual band, 802.11 a/b/g/n, 2.4GHz 2dBi, 5GHz 3.7
dBi, RPSMA connector
CABLES
CA1210 - DC Power Extension Cable
Power Extension Cable, DC, 6', waterproof
Mfr Part # CA1210 SKU: HJ00620465
CA1230 - Power Extension Cable (Pre Regulator with Ignition Sense)
Power extension cable for pre-regulator with ignition sense
CA1220 - DC Power Extension Cable (With Ignition Sense)
Power Extension Cable, DC, 180 cm, with ignition sense
CA1300 - Screen Blanking Cable
Screen blanking cable (DB9 to open wires)
MISCELLANEOUS
M1000 - Speaker with Mic & Push-to-talk Function
Speaker/Mic with push-to-talk function
MT3501 - VESA Plate
VESA plate (for 4 or 12 RAM arm)
MT3502 - Round Plate
Round plate (for 4 or 12 RAM arm)
SKU: HJ00620463 Mfr Part # MT3502
MT3505 - Clamp Base
Clamp base (for 4 or 12 RAM arm), 2 max. width
MT3507 - Clamp Base (3 Max)
Clamp base (for 4 or 12 RAM arm), 3 max. width
MT3509 - Rail Base
Rail base (for 4 or 12 RAM arm), 1-1/4 to 1-7/8
MT3510 - Rail Base (2 to 2 1/2 Inches)
Rail base (for 4 or 12 RAM arm), 2 to 2 1/2
KT-SPRTCT-VC70-05R - Screen Protector (Pack of 5)
Kit: Screen protector, VC70, s et of 5
Mfr Part # KT-SPRTCT-VC70-05R
MT4200 - Quick Release Mount
Zebra Quick Release Mount.
MT4210 - Adapter Bracket Kit for Quick Release Mount
Adapter bracket kit for 82XX quick release mount
MT4510 - RAM Rectangular Base (With 2.25" Rubber Ball)
RAM rectangular base with 2.25 inch rubber ball
MT4301 - RAM Mount (4 Inch Arm)
RAM Mount, 4" arm (VH10 / VC80)
MT4302 - RAM Mount (12 Inch Arm)
RAM mount, 12 inch arm
SL0001 - Stylus with Holder
Stylus and Stylus Holder
KT-SCANMNT-VC80-R - Side Mounted Holder
VC80 Side Mounted Holder For Scanner for LSxxxx and DSxxxx rugged scanners.
Can be mounted on the left or right side and combined with the MT4100
Quick Release Mount.
Mfr Part # KT-SCANMNT-VC80-R
KT-KYBDMNT-VC80-R - Keypad Mount Bracket
VC80 Function/Numeric Keypad Side Mount Bracket.
Mfr Part # KT-KYBDMNT-VC80-R
Zebra VC80 QWERTY Keyboard Kit w/ Short Cable
QWERTY Keyboard Kit with Short Cable - VC80 - includes QWERTY Keyboard
(KYBD-QW-VC-01) and Keyboard Cable (CBL-VC80-KBUS1-01) - Short 22cm
(8.5in) cable allows installation close to the vehicle computer -
12 direct function keys with an additional 12 via shift function
- Dimmable backlit keys - IP66 -30 to +50C condensing for use in
freezer environments - Build-in heaters and drainage system for error
free operations even in heavy condensing environments - Industrial
keyboard controller with temperature compensation - Can be mounted
on Keyboard Tray (KT-KYBDTRAY-VC80-R) or via a RAM mount - Keyboard
elastomer and cable are both replaceable.
Mfr Part # KYBD-QW-VC80-S-1
Zebra VC80 QWERTY Keyboard Kit w/ Long Cable
VC80 - QWERTY Keyboard Kit with Long Cable - includes QWERTY Keyboard
(KYBD-QW-VC-01) and Keyboard Cable (CBL-VC80-KBUS2-01) - Long 300cm
(10ft) cable allows installation further away from the vehicle computer
- 12 direct function keys with an additional 12 via shift function
- Dimmable backlit keys - IP66 -30 to +50C condensing for use in
freezer environments - Build-in heaters and drainage system for error
free operations even in heavy condensing environments - Industrial
keyboard controller with temperature compensation - Can be mounted
on Keyboard Tray (KT-KYBDTRAY-VC80-R) or via a RAM mount - Keyboard
elastomer and cable are both replaceable.
Mfr Part # KYBD-QW-VC80-L-1
STANDS/HOLDERS
KT-U-MOUNT-VC80-R - VC80 U-Mount
VC80 U-Mount with VC70 Hole Pattern.
Mfr Part # KT-U-MOUNT-VC80-R
Zebra OneCare Next Business Day OnSite w/Comprehensive Cover - 3 Year
3 Year(s) Zebra OneCare Next Business Day Onsite (US and UK only)for
VC80XX, Purchased within 30 days, with Comprehensive coverage.
Mfr Part # Z1A1-VC80XX-3C00
Zebra OneCare Essential w/Comprehensive Cover - 3 Year
3 Year Zebra onecare essential. includes coverage for keyboard. includes
comprehensive coverage
Mfr Part # Z1AE-VC80XX-3C00
Zebra OneCare Essential w/Comprehensive Cover - 5 Year
5 Year Zebra onecare essential. includes coverage for keyboard. includes
comprehensive coverage.
Mfr Part # Z1AE-VC80XX-5C00
Zebra OneCare Select w/Comprehensive Cover - 3 Year
3 Year Zebra onecare select. includes coverage for keyboard. includes
comprehensive coverage. (requires customer-supplied spares pool in
na, not available for la.)
Mfr Part # Z1AS-VC80XX-3C03
Zebra OneCare Select w/Comprehensive Cover - 5 Year
5 Year Zebra onecare select. includes coverage for keyboard. includes
comprehensive coverage. (requires customer-supplied spares pool in
na, not available for la.)
Mfr Part # Z1AS-VC80XX-5C03
Zebra OneCare Service Center Essential - 1 Year
1 year zebra onecare service center essential. includes coverage for
keyboard. does not include comprehensive coverage.
Mfr Part # Z1BE-VC80XX-1000
Zebra OneCare Service Center Essential - 1 Year
1 year zebra onecare service center essential. includes coverage for
keyboard. does not include comprehensive coverage.
Mfr Part # Z1BE-VC80XX-1000
Zebra OneCare Service Center Select - 1 Year
1 year zebra onecare service center select. includes coverage for keyboard.
does not include comprehensive coverage. (requires customer-supplied
spares pool in na, not available for la.)
Mfr Part # Z1BS-VC80XX-1003
Zebra OneCare Essential Renewal w/Comprehensive Cover - 1 Year
1 Year Zebra onecare essential renewal. includes coverage for keyboard.
includes comprehensive coverage.
Mfr Part # Z1RE-VC80XX-1C00
Zebra OneCare Select Renewal w/Comprehensive Cover - 1 Year
1 Year Zebra onecare select renewal. includes coverage for keyboard.
includes comprehensive coverage. (requires customer-supplied spares
pool in na, not available for la.)
Mfr Part # Z1RS-VC80XX-1C03
Zebra OneCare Select Renewal w/Comprehensive Cover - 2 Year
2 Year Zebra onecare select renewal. includes coverage for keyboard.
includes comp coverage. (requires customer-supplied spares pool in
na, not available for la.) can only be ordered once after initial
contract expires.
Mfr Part # Z1RS-VC80XX-2C03
Zebra VC80x
specification
PHYSICAL CHARACTERISTICS
Dimensions
10.9 in. W x 9.4 in. H x 3.5 in. D 276 mm W x 238 mm H x 90 mm D
Weight
8.1 lbs./3.7 kg
Keyboard Options
External QWERTY and AZERTY, optional L-mount
Power
Internal power supply 12-48V nominal, designed for forklift power
UPS
Rechargeable UPS battery for operation during power loss
Display
10.4 in. color XGA (1024 x 768) LCD; 24-bit color depth; choice of 400 or 1,000 NITs; LED backlight
Touchscreen
Resistive touchscreen with passive stylus or finger operation Freezer version: integrated touchscreen heater evaporates external condensation when moving out of and into freezers
Keys
Six (6) programmable macro keys; volume; brightness; blue key for 2nd level functions; on/off key
Interface Ports
Standard sealed and secured connectors: 2 RS-232 serial ports; 1 standard USB port; 1 powered USB port; 1 3.5 mm audio jack; optional Ethernet port via adapter
Indicators
Power LED; warning LED; blue key status LED
Scanner Support
Handheld scanners and imagers connected via USB, RS-232 or Bluetooth; SSI support for DS36xx Series scanners and RS6000 Bluetooth scanner
Mounting
Quick release mount; standard RAM mounts; adapters for legacy vehicle computer mounts
PERFORMANCE CHARACTERISTICS
CPU and RAM
Qualcomm 8056 1.8 GHz hexa-core 64 bit with power optimization, with 4 GB RAM
Operating System
Android 7.1.2 (Nougat) – AOSP; GMS – select configurations
Mass Storage
32 GB eMMC (pSLC)
Software (pre-licensed and pre-loaded)
DataWedge with SSI scanner support; Workforce Connect PTT Express; Ivanti Velocity powered by Wavelink
Optional Software
Workforce Connect PTT Pro, SOTI MobiControl
