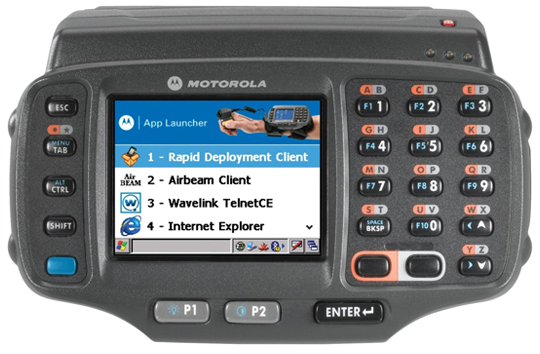

Motorola WT41N0
specification
Physical and Environmental Characteristics
Dimensions
5.7 in. L x 3.7 in. W x 1.0 in. H
142 mm L x 93 mm W x 26 mm H
Weight
Terminal w/ Standard Battery:
11.3 oz. (8.4 oz. + 2.9 oz.)
320.3 g (238.1 g + 82.2 g)
Terminal w/ Extended Battery:
13 oz. (8.4 oz. + 4.6 oz.)
369.8 g (238.1 g + 131.7 g)
Holder: 2.5 oz./70.9 g (inc. straps and cushion)
Keyboard
23 key alpha-numeric for alpha entry: legacy
color-coded alpha entry
Display Type
Backlit color TFT, touch screen available
Display Resolution
QVGA in landscape mode (320 x 240)
Power
Rechargeable Li-ion battery
2,400 mAh @ 3.7 VDC
Extended rechargeable Li-ion battery
4,800 mAh @ 3.7 VDC
Performance Characteristics
Processor
Dual Core OMAP 4 @ 1GHz
Operating System
Microsoft Windows Embedded Compact CE 7.0
Memory
512 MB RAM ; 2 GB Flash
Application
Development
Microsoft IDEs and Motorola SDKs
Data Capture Options

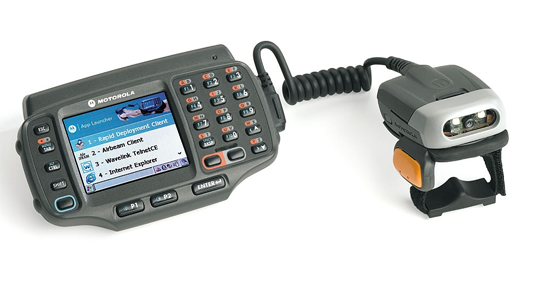

Wearable scanners RS507, RS419, RS409 and
RS309 are optional accessories
Voice Recognition
Can run voice recognition engines and text-tospeech
engines for voice picking applications
Communications
USB (Host and Client)
Audio Options
AC 97 Compatible Codec to play audio
over speaker or headset; microphone;
simultaneous audio
User Environment
Operating Temp.
-4° to 122° F/-20° to 50° C
-22° to 122° F/-30° to 50° C
Storage Temp.
-40° to 158° F/-40° to 70° C
Humidity
5% to 95% non-condensing
Drop Spec
Multiple drops to concrete: 4 ft./1.2 m
across the operating temperature range
Tumble Spec
500 one-half meter tumbles at room
temperature (1,000 drops)
Sealing
IP54 Category 2
Electrostatic
Discharge (ESD)
EN61000-4-2 15kV Air, 8kV contact,
8kV indirect
Wireless Data Communications
WLAN
IEEE 802.11a/b/g/n
Output Power
100 mW U.S. and international
Data Rate
802.11a: up to 54 Mbps
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
802.11n up to 72.2 Mbps
Antenna
Internal with Diversity
Frequency Range
All country dependent — typically:
802.11b/g: 2.4 to 2.5 GHz
802.11a: 5.0 GHz
802.11n: 2.5 and 5.0 GHz
WPAN
Bluetooth 2.1 + EDR
Peripherals and Accessories
Cradles
Single-slot USB charging cradle with spare
battery well; four-slot Ethernet charging cradle
Printers
Supports extensive line of approved printers
Charger
Four-slot battery charger
Mounts

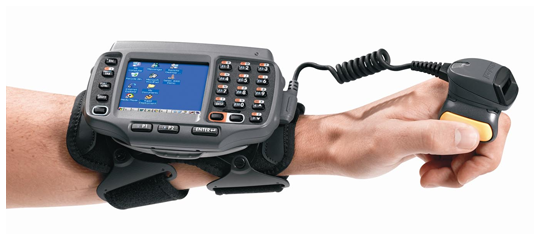

Wrist-mount and hip-mount accessories
are available
Other Accessories
RS507/RS419/RS409/RS309 wearable
scanners; RCH51 rugged headset; headset
adapters; freezer pouches that extend the
operating temperature range
Regulatory
Electrical Safety
Certified to UL60950-1, CSA C22.2 No.
60950-1, EN60950/IEC 60950-1
plus all national deviations
EMC
FCC Part 15 Subpart B, ICE S-003 Class B,
EN 61000-3-2, EN 61000-3-3, CISPR 22 Class
B, CISPR 24, EN 301 489-1, EN 301 489-17
RF
FCC Parts 15.247, 15.407, 15.205, 15.207,
15.209, 15.203, EN 300 328, EN301 893,
RSS-100, RSS-210, ARIB STD-66 & 33, ARIB
STD-T71, AS/NZS 4268
