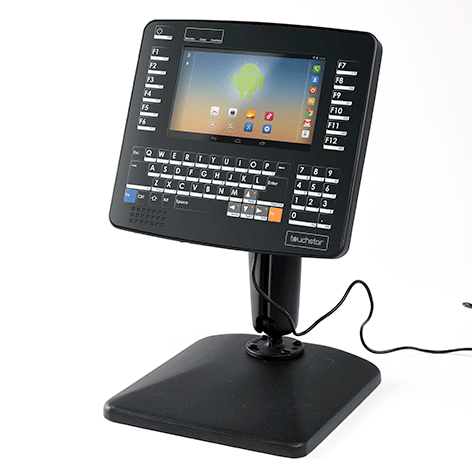

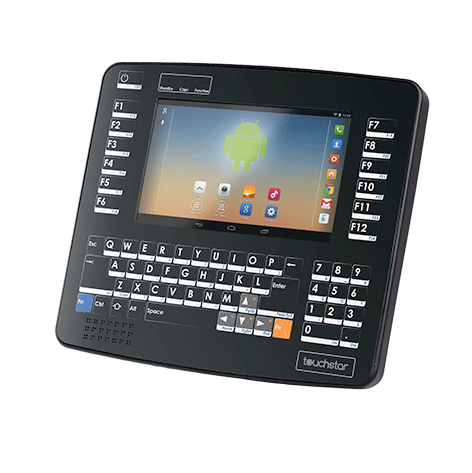

TouchStar TS7100
specification
PHYSICAL
Dimensions – 258mm (W) x 42mm (D) x 227mm (H)
Weight – 1.6kg Case –
Impact Resistant, Flame Retardant, Stainless Steel Chassis Case Material –
Plastic Alloy
DISPLAY SPECIFICATION
7”, 16:9 ratio, Colour TFT, Anti- Glare, WVGA,
800 x 480 pixels LED Backlit,
Direct Sunlight Readable
TOUCHSCREEN
High Impact Industrial Polycarbonate,
Resistive – Finger, Stylus – Glove Operable
AUDIO SPECIFICATIONS
High Power Speaker
PERFORMANCE SPECIFICATION
Processor – Freescale iMX6 800MHz - 1GHz
MEMORY / STORAGE SPECIFICATIONS
32GB eNAND Flash Standard – 64GB Option 2GB Low Power
DDR2 RAM POWER SPECIFICATION
18V- 75Vdc, Lithium Ion Battery – 13.32Wh,
Single Lithium Ion Back Up Battery – 4.6Wh
COMMUNICATION AND INTERFACE PORTS
Micro SD Card (Option), SD Card – SDIO (Option),
SIMCard Socket (Option), GPRS 3G –
HSPA Mobile Broadband (Option) External Ports: Serial Port –
RS232 9 Pin D- Type, Ethernet 100Base-t (Option),
USB Ports – 2 x Host (Option)
WIFI
802.11a/b/g/n (2.4GHz/5GHz)
GPS MODULE PERFORMANCE
Multi-GNSS receiver, GPS, Glonass, Galileo, QZSS,
Hot Start < 1s - Cold Start < 35s,NMEA
3G HSPA MODULE – MOBILE BROADBAND
HSPA+ 7.2 Mbps downlink - 5.7 Mbps Uplink
BLUETOOTH
Bluetooth 4.0 + EDR, Hands Free Audio Interface Support
EXTERNAL SCANNNER OPTIONS
Standard Range, Long Range, High Performance,
Wireless Scanner, 2D Imager
EXTERNAL RFID OPTIONS
LF 123KHz, HF 13.56MHz
KEYBOARD INTERFACE (64 KEYS)
Sealed Membrane – Wipe Clean/Rugged
Alpha Numeric
QWERTY Keyboard, Backlit Keypad,
24 Function Keys, 0-9 Numeric Keys, Up, Down, Left, Right
Navigational Keys, Alt, On/Off, Programmable & Enter Keys
OPERATING SYSTEM
Android Marshmallow 6
OPERATING TEMPERATURE
-20˚C to +50˚C
STORAGE TEMPERATURE
-30˚C to +70˚C
RELATIVE HUMIDITY
95% (non condensing)
SHOCK
1.5m drop on to concrete, Withstands Vehicle Vibration
ENVIRONMENTAL
IP54, IP65 (Option)
