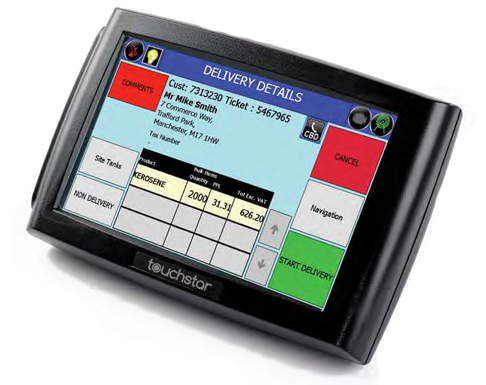

TouchStar TS3000 Windows Tablet
Overview
The TouchStar TS3000 is a 'Tour de force' in both design and ingenuity. Suitable even for the most rigorous use in the most extreme conditions, the TouchStar TS3000 provides full protection against dust, water and oil ingress and is fully compliant with the ATEX IECEx directive, allowing safe use even in potentially explosive environments.
Whilst designed to be vehicle mounted, the TouchStar TS3000 utilises an innovative quick-release mechanism allowing the user to detach it from the vehicle and switch smoothly and easily to a mobile mode of operation.
The integration of the powerful 3G HSPA radio technology combines with the dynamic data collection capabilities of the high resolution imager, 3 mega pixel camera and high-speed 1GHz processor to deliver startling productivity and efficiency gains.
Key Features
- Tough rugged design, built for purpose
- Vehicle mounted or portable
- Large high resolution touch screen
- High resolution imager and camera
For full technical specification click on the 'DOWNLOADS' section above.
TouchStar TS3000 Windows Tablet
PHYSICAL
Dimensions – 200mm (W) x 45mm (D) x 130mm (H)
Weight – 900g,
Case – Impact resistant, flame retardant
Case Material – UV stabilised polycarbonate
Internal Chassis – Mounted on rubber shock absorbers
DISPLAY SPECIFICATION
7” Colour TFT, Anti-Glare, 16:9 Ratio, Wide 16:9 WVGA
800 x 480 pixels, LED Backlit, Direct Sunlight Readable
TOUCHSCREEN
High Impact Polycarbonate,
Resistive – Glove operable – Signature capture
AUDIO SPECIFICATIONS
High Power Speaker
PERFORMANCE SPECIFICATION
Processor – TI OMAP 800MHz - 1GHz
MEMORY / STORAGE SPECIFICATIONS
512MB NAND Flash
512MB Low Power DDR RAM
POWER SPECIFICATION
9 to 26V DC, 580mA (typical @ 12V) - 1700mA
COMMUNICATION AND INTERFACE PORTS
2 x Micro SD Card,
SD Card – SDIO, USB 2.0 OTG, SIM Card Socket
INTERNAL BATTERY BACKUP
Single Lithium Ion cell, 1200mAh, 4.6Wh
REMOVABLE RECHARGEABLE BATTERY
Main Battery Removable 7.4V 4200mAh, 31Wh
CRADLE INTERFACE
USB 2.0 Host, RS232 - 9pin (TX, RX, CTS, RTS, DTR, DSR, CD, RI),
CAN Bus, Ethernet 10/100Base-T, Microphone input,
Speaker/Headset output, HSPA connector for external antenna
(switched), GPS connector for external antenna (switched),
Cradle Charge Detect, Power Input 10.25V
WIFI
802.11a/b/g/n (2.4GHz/5GHz)
GPS MODULE PERFORMANCE
Multi-GNSS receiver, GPS, Glonass, Galileo, QZSS,
Hot Start < 1Ss - Cold Start < 35s, NMEA
3G HSPA MODULE – MOBILE BROADBAND
HSPA+ 7.2 Mbps downlink - 5.7 Mbps Uplink
BLUETOOTH
Bluetooth 2.1 + EDR, Hands Free Audio Interface Support
REAR CAMERA
3M Pixel
FLASH
LUXEON Flash
EXPANSION PORT
Additional RS232 RX, TX, RTS, CTS
SCANNER/IMAGER OPTIONS
Imager 1D - 2D
OPERATING SYSTEM
Microsoft Windows Embedded Compact 7,
Application Support Package, Full Dialler Application – Bluetooth,
Full Range of Mobile Applications
OPERATING TEMPERATURE
-20˚C to +50˚C
STORAGE TEMPERATURE
-30˚C to +70˚C
SHOCK
1.5m drop onto concrete
ENVIRONMENTAL
IP65
APPROVALS
CE / FCC
ACCESSORIES
4 Gang Battery Charger, In-Vehicle Cradle & Cable assemblies,
Expansion Hub & Cable assemblies, Smart Hub & Cable assemblies
ATEX / IECEX
