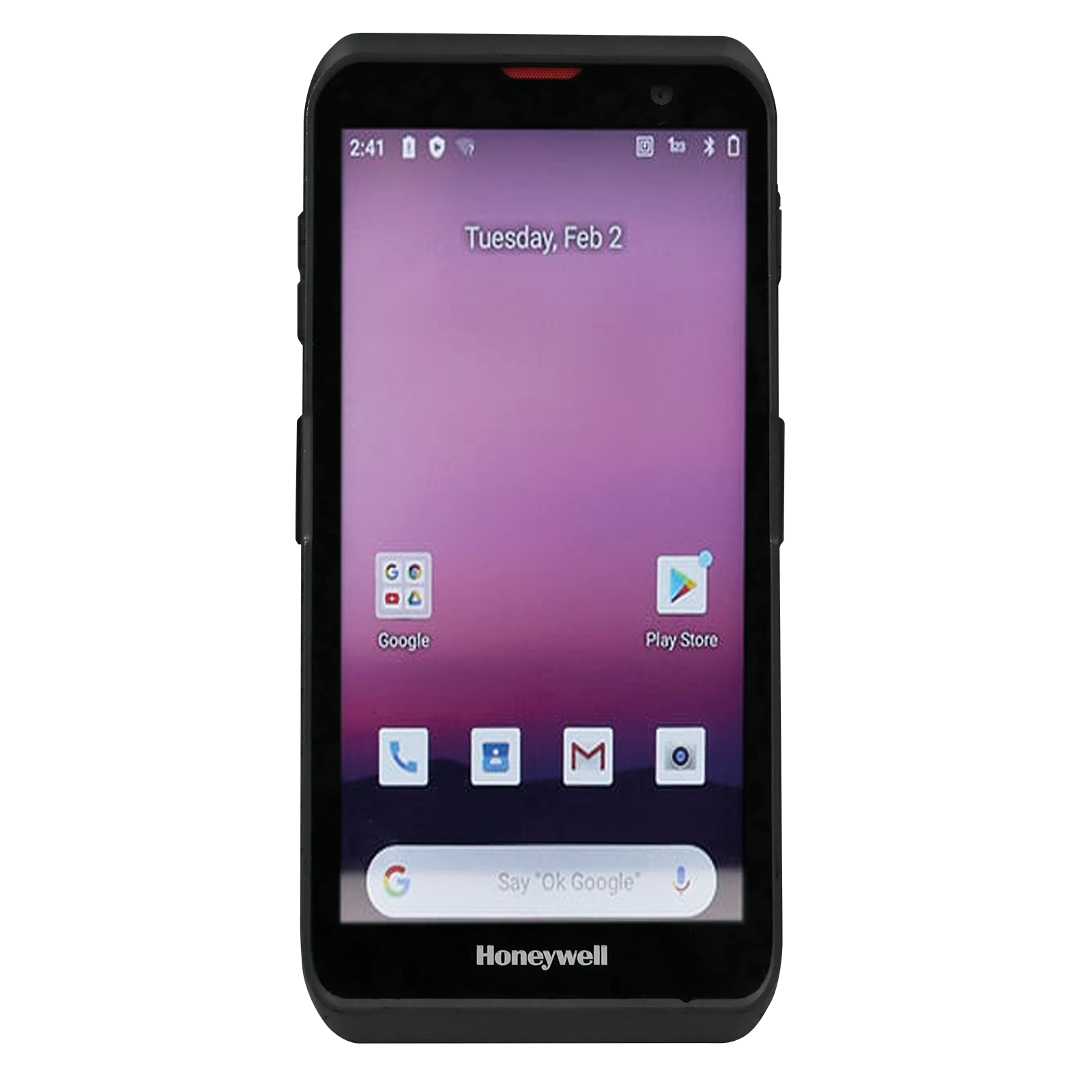

Honeywell EDA52 Handheld Computer
Elevate Efficiency with the Honeywell EDA52
Introducing the Honeywell ScanPal™ EDA52, an enterprise-class handheld computer designed to provide secure and seamless connectivity between workers and back-end software systems.
Built for performance and durability, it is well suited to a wide range of industry applications including logistics, manufacture, retail, healthcare and public service.
Honeywell EDA52 - Driving Cutting Edge Performance
The Honeywell EDA52 ScanPal series excels in all manner of applications. Seamlessly integrating the latest Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi 5, Bluetooth 5.1 and 4GLTE communications it effortlessly caters to the demands of modern enterprise operations.
Intuitive and Ergonomic Design
Facilitating one handed operation with ease, the Honeywell EDA52 handheld computer combines an industrial design with lightweight user comfort. It’s prominent 5.5-inch Gorilla Glass touch screen interface supports effortless and intuitive navigation for all-day operation.
Rugged and Fit for Purpose
Built for demanding environments, the EDA52 boasts a IP67 rating and fit for purpose design. Capable of full prolonged and interrupted usage between each battery charge, it also features a 4500mAh removeable for battery for swift charging and reduced operational downtime.
Data Capture for Every Detail
Incorporating the new powerful S0703 scan engine, user’s experience exceptionally fast reading capabilities even on damaged or incomplete barcodes. The inclusion of a 13-megapixel rear camera also allows users to document high quality images with the upmost ease and efficiency.
Upgrade your data capture to the Honeywell EDA52 Handheld Computer – your ultimate enterprise companion.
FIND OUT MORE
Honeywell EDA52 Mobile Computer
MECHANICAL
Dimensions:
159mm x 75 mm x 14.4 mm
(6.26 in x 2.95 in x 0.57 in)
Weight
257g
Display Size
Gorilla Glass 5, 5.5-inch
Resolution
1440 x 720 High Definition
Backlight
LED
Touchscreen
Multi-touch capacitive (CTP), GFF
Hard Keys
5 side keys for volume up/down, right and left scan keys and power on/off
ENVIRONMENTAL
Operating Temperature
-20°C to +50°C (-4°F to +122°F)
Storage Temperature
-30°C to +70°C (-22°F to 158°F)
Humidity
5% to 90% (non-condensing)
Drop
Multiple 1.3m (4.3ft) per MIL-STD 810G drops to concrete at room temperature Multiple 1.5m (5ft) per MIL-STD 810G drops with rubber boot concrete at room temperature
Tumble
550 times at 0.5 m (1.64 ft)
Environmental Sealing
IP67
Electrostatic Discharge (ESD)
±8 kV direct; ±15 kV air
SYSTEM ARCHITECTURE
Processor
Qualcomm Snapdragon SM6115, Quad high-performance Kryo cores 2.0 GHz +Quad low-power Kryo cores 1.8 GHz
Memory
4 GB RAM/64 GB Flash
Operating System
Android 11, and upgradeable to Android 13* Storage Expansion: MicroSD (up to 128 GB)
Rear Camera
13-megapixel color camera
Front Camera
5-megapixel color camera
Interface Ports
6 pin bottom connection
Battery
Li-Ion, 3.8 V, 4,500 mAh, removable
Real-Time Clock (RTC)
10 min backup via super-cap
Charging Time
less than 3.5 hours
Scan Engine
Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
LED
Battery Status Indicator
red/green/blue
Scan Indication
red/green
Sensors
acceleration sensor, light sensor, and proximity sensor
Localization & Language
Worldwide English
WIRELESS CONNECTIVITY
WLAN (Wi-Fi Alliance certified)
IEEE 802.11 a/b/g/n/ac
Additional WLAN Features
802.11 d/e/h/i/k/ r/u/w /v , 1X1 MU-MIMO
WLAN Security
OPEN, WEP, WPA/WPA2 (Personal and Enterprise WPA2), WPA3 (OWE, SAE, Enterprise)
WLAN Supported EAP
TLS, PEAP, TTLS, PWD, LEAP
Bluetooth®
Bluetooth Class 5.1
WWAN Radio
GSM/EDGE: Bands 2, 3, 5, 8
UMTS/HSPA+: Bands 1, 2, 4, 5, 6,
8, 9, 19
FDD-LTE: Bands 1, 2, 3, 4, 5, 7, 8, 9,
12,13,17,19,20,25,26,28,30,66
TDD-LTE: Bands 38, 39, 40, 41
NFC
Integrated Near Field Communication
GPS (WWAN only) Supported Protocols
Simultaneous receiver support for GPS, GLONASS, and BeiDou
ACCESSORIES
Single Charging Home Base
Charges one terminal and one replaceable battery simultaneously
Backwards Adaptor Cup
Be compatible with EDA50/51 single charging dock
Standard Battery Pack
Quad Bay Battery Charger
RFID Bracket
Scan Handle
Rubber Boot
Wrist Strap
Hand Strap
Screen Film
Single Charging Dock
Charges one terminal
Quad Bay Charging Base
Charges four terminals simultaneously
UNIVERSAL ACCESSORIES
EDA52 Non-booted Net Base
Charges four terminals simultaneously with ethernet communication
EDA52 Non-booted Display Dock
Charges one terminal with external display and ethernet communication
USB Cup
Universal Cup
Be compatible with CT4X universal docks
WARRANTY
One-year factory warranty For more information about Warranty, please visit https://sps.honeywell.com/us/en/support/ productivity/warranties
