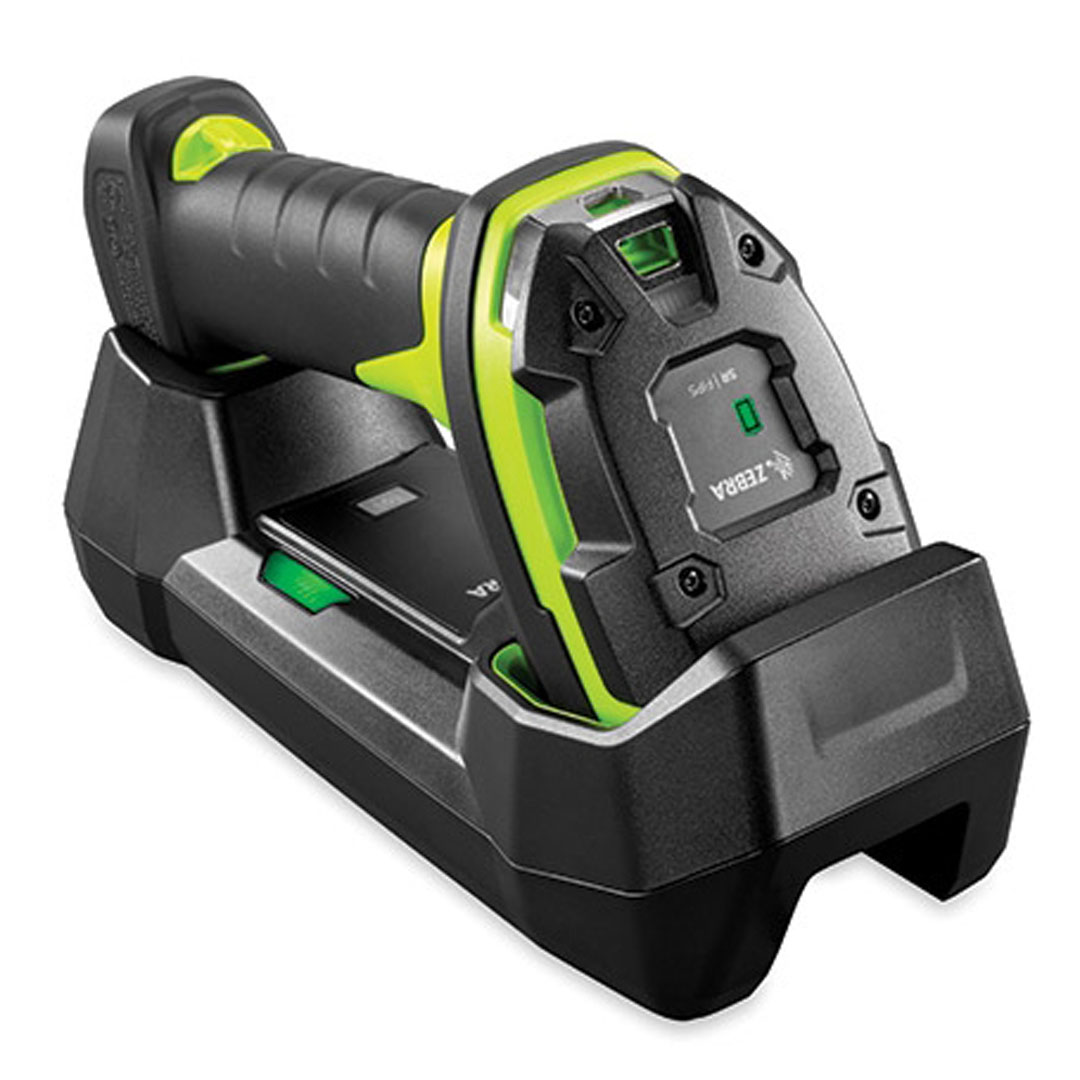

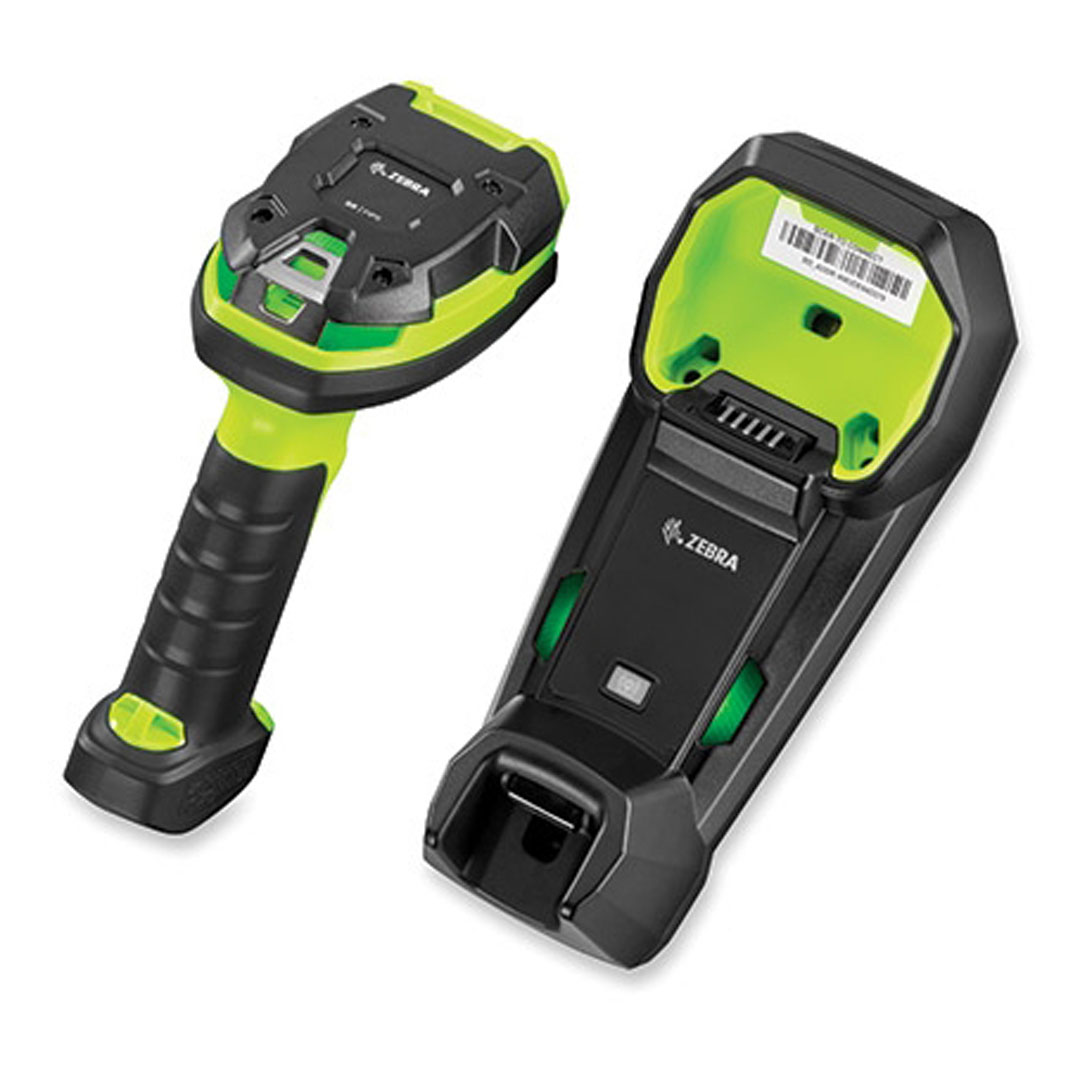

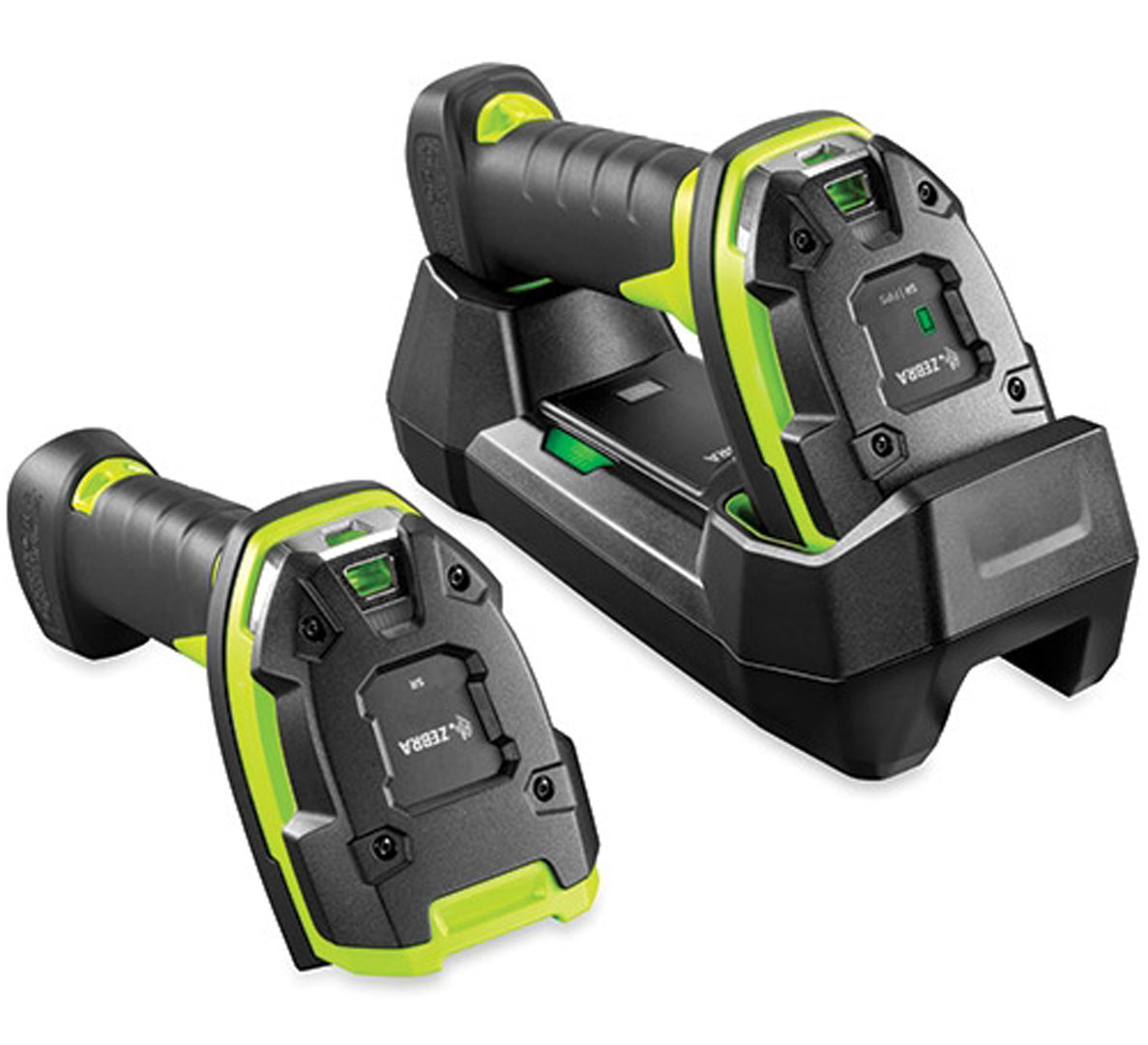

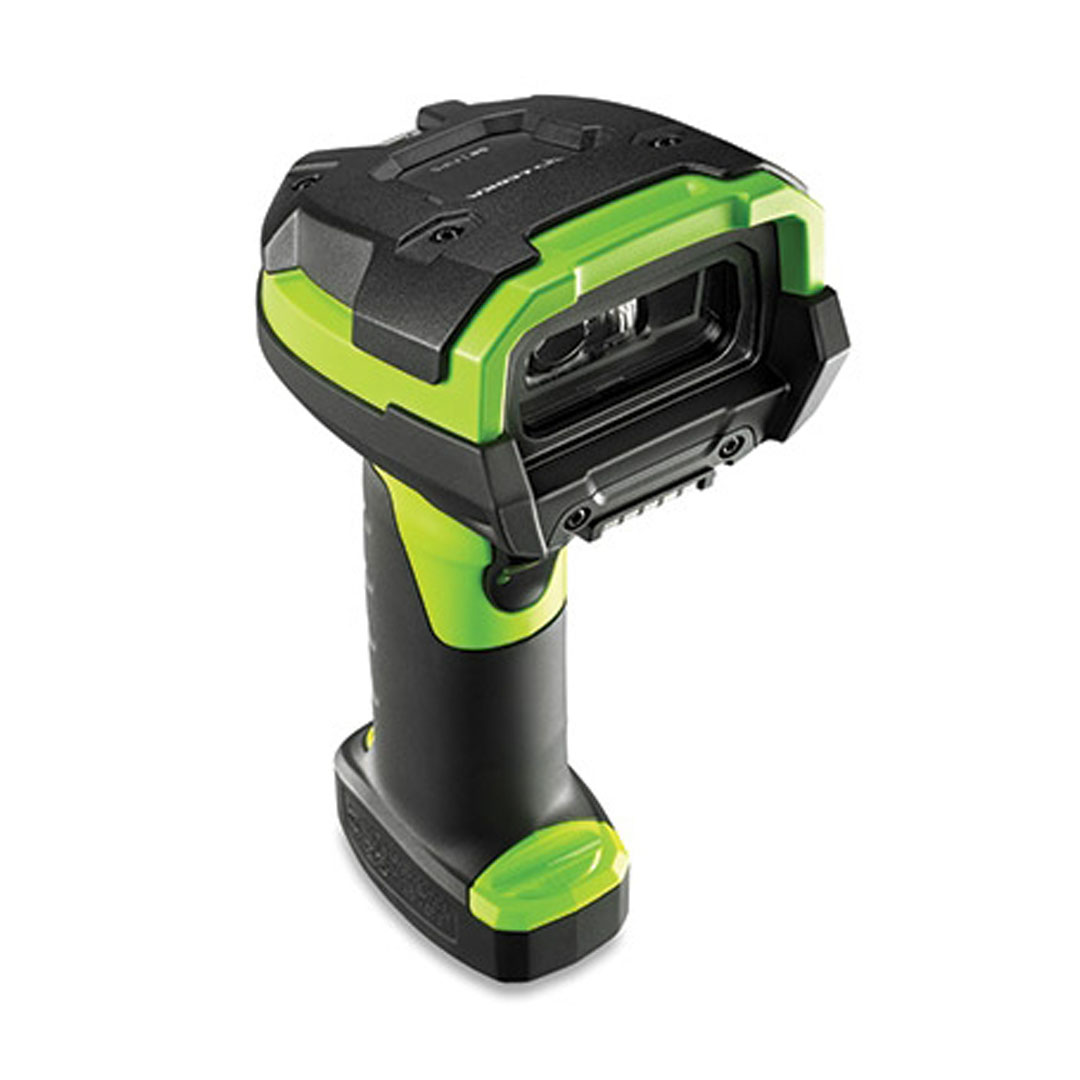

Zebra LI3608-SR/LI3678-SR

Performance chaRacteRistics

Scans per Full Charge

70,000+

Illumination

Two (2) 617nm Amber LEDs

Imager Field of View

35°

Image Sensor

1,500 pixels

Minimum Print Contrast

15% minimum reflective difference

Skew/Pitch/Roll

Skew: ± 65°; Pitch: ± 65°; Roll: ± 45°

decode caPabilities**

1D

Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

useR enViRonment

Operating Temp.

Corded: -22° F to 122° F/-30° C to 50° C Cordless: -4° F to 122° F/-20° C to 50° C

Storage Temp.

-40° F to 158° F/-40° C to 70° C

Humidity

5% to 95% condensing

Drop Specification

Withstands multiple 8.0 ft. / 2.4 m drops to concrete

Tumble Specification

5,000 tumbles @ 3.3 ft. (1 m)

Sealing

Scanner: IP65 and IP67; FLB cradle: IP65

ESD

Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge

Ambient Light Immunity

0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight)

utilities and maintenance

123Scan2

Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. For more information, visit www.zebra.com/123Scan

Scanner SDK

Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowsSDK

Scanner Management Service (SMS)

Remotely manages your Zebra scanner and queries its asset information. For more information, visit www.zebra.com/sms

wireless connectivity

Bluetooth Radio

Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles

Data Rate

3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy

Radio Range

Direct line of sight in open air : Class 1: Up to 300 ft. (100.0 m) Class 2: Up to 30 ft. (10.0 m)

RegulatoRY

Environmental

RoHS EN 50581: 2012

Electrical Safety

EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013 International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013 US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07/p>

LED Safety

International LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED)

EMI/RFI

IT Emissions: EN 55022: 2010/AC: 2011 (Class B)

IT Immunity: EN 55024: 2010

Heavy Industrial: EN 61000-6-2: 2005/AC:2005

Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B)

Voltage Fluctuation and Flicker: EN 61000-3-3: 2013

Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified) Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B

Digital Apparatus: ICES-003 Issue 5, Class B

WaRRantY

Subject to the terms of Zebra’s hardware warranty statement, the LI3608 is warranted against defects in workmanship and materials for a period of three (3) years from the date of shipment. For complete warranty statement, go to: http://www.zebra.com/warranty

Recommended seRVices

Zebra OneCare Select; Zebra OneCare Essential

decode Ranges

Symbology/Resolution

Code 39: 4 mil

Code 39: 7.5 mil

UPC: 13 mil (100%)

Code 39: 20 mil

Symbology/Resolution

Near/Far

4.0-10.0 in./10.2-25.4 cm

1.5-19.0 in./3.8-48.3 cm

1.0-31.0 in./2.5-78.7 cm

0-42.0 in./0-106.7 cm

* Heated scanner holder accessory required for use in freezers.

** Refer to Product Reference Guide for complete list of symbologies.

Storage Temperature with battery :

-40°C to 70°C (-40°F to 158°F)

Humidity:

0 to 95% relative humidity, non-condensing

Drop:

Designed to withstand 50 1.2 m (4’) drops to concrete at -20°C

Tumble :

5,000 1m (40˝) tumbles

Environmental Sealing :

IP51

Light Levels :

N/A

ESD :

±20Kv air discharge, ±8kV contact discharge

Scan Performance:

Scan Pattern:

Area Image

Scan Angle:

Horizontal: 12.9° Vertical: 8°

Symbol Contrast:

1D Codes: 30% minimum reflectance difference

2D Codes: 40% minimum reflectance difference

Min. Resolution:

1D & 2D Codes: 2 mil

Pitch, Skew:

70°, 80°

Warranty:

3 year factory warranty (Note: battery warranty is 1 year)
