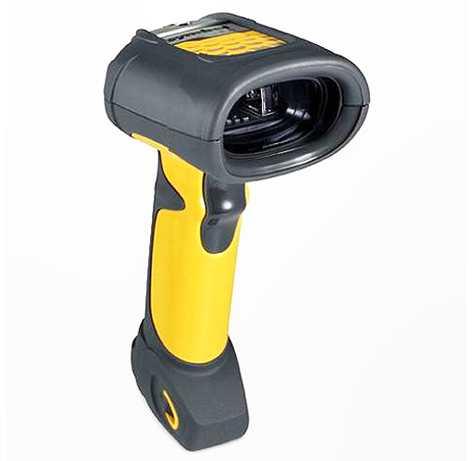

Symbol LS3578-ER Cordless Scanner
specification
Physical Characteristics
Dimensions: 7.34 in. L x 4.82 in. W x 2.93 in. D
(18.65 cm H x 12.25 cm W x 7.43 cm D)
Weight: (including LiON battery) 14.8 oz. (420 gm)
Battery: 2200 mAh Lithium Ion Battery
Battery charge time: Fully charged (100%) in 3 hours
Color: Twilight Black and Yellow
Performance Characteristics
Scanner type: Retrocollective
Light source: 650 nm visible laser diode
Scan repetition: 36 scans per second typical
Minimum element width: 7.5 mil (0.191 mm)
Nominal working distance: See decode zone
Print contrast: 25% minimum reflective difference
Roll (Tilt)1: +/- 10 degrees from normal
Pitch2: +/- 65 degrees from normal
Skew (Yaw)3: +/- 60 degrees from normal
Decode capability: UPC.EAN, UPC.EAN with Supplemental,
GS1-128 (formerly UCC/EAN 128),
JAN 8 & 13, Code 39,Code 39 Full ASCII,
Code 39 Trioptic, Code 128, Code 128 Full
ASCII, Codabar (NW7), Interleaved 2 of 5,
Discrete 2 of 5, Code 93, MSI, Code 11,
Code 32, Bookland EAN, IATA, GS1DataBar
(formerly RSS)
Interfaces supported: RS232, Keyboard Wedge, IBM 468X/469X,
USB and Synapse
User Environment
Operating temperature: -4˚ to 122˚F (-20˚ to 50˚C)
Storage temperature: -40˚ to 140˚F (-40˚ to 60˚C)
Humidity: 5% to 95% relative humidity,
noncondensing
Sealing: Sealed to IP65 specifications
Drop specifications: Unit functions normally after 50 drops to
concrete from 6.5 ft. (2m)
# of Cradle Insertions: 250,000+ insertions
Ambient light immunity: Immune to direct exposure of normal
office and factory lighting conditions,
as well as direct exposure to sunlight.
Electrostatic discharge: Conforms to 20 kV air discharge and 8 kV
of contact discharge

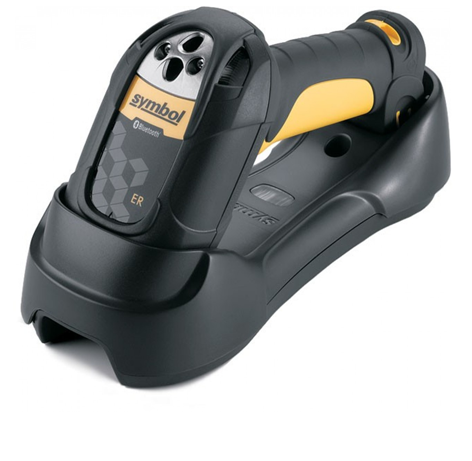

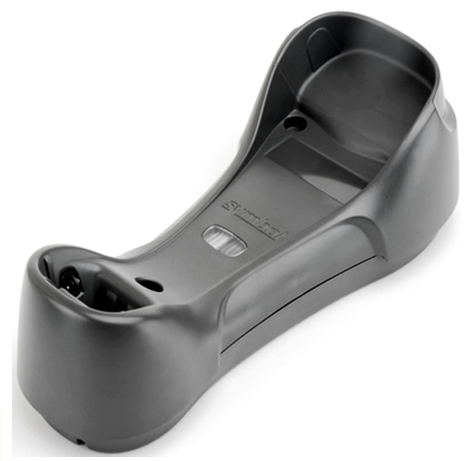

| Cradles |
STB 3508 and FLB 3508 |
STB 3578 and FLB 3578 |
| Power requirements: | 4.75 – 14 VDC | 4.75 – 14 VDC |
| Typical current draw: |
| Not charging: | 10 mA | 105 mA @5V
45 mA @9V |
| Fast rate charge: | 915 mA @5V
660 mA @9V | 915 mA @5V
660 mA @9V |
| Slow rate charge: | 480 mA @5V
345 mA @9V | 480 mA @5V
345 mA @9V |
Radio specification
Radio: Bluetooth, Class 2, Version 1.2, Serial port
and HID Profiles
2.402 to 2.480 GHz adaptive frequency
hopping (co-existence with 802.11 wireless
networks)
Data rate: 720 kbps
Radio Range: Up to 300 ft. in open air*
*See Bluetooth Radio Performance Technical Brief for
more information.
Regulatory
Input transient protection: IEC 1000-4-(2,3,4,5,6,11)
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B,
European Union EMC Directive,
Japan VCCI/MITI/Dentori
Laser safety: IEC825-1 Class 2
Warranty
The Symbol LS3578-ER is warranted against defects in workmanship
and materials for a period of 3 years (36 months) from date of
shipment, provided that the product remains unmodified and is operated
under normal and proper conditions. See full warranty
for details.
