Wireless:
2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1: Class 1: 100m (330’) line of sight
Data Rate (Transmission Rate):
Number of Scans:
Expected Hours of Operation:
Expected Charge Time:
Battery:
Mechanical / Electrical:

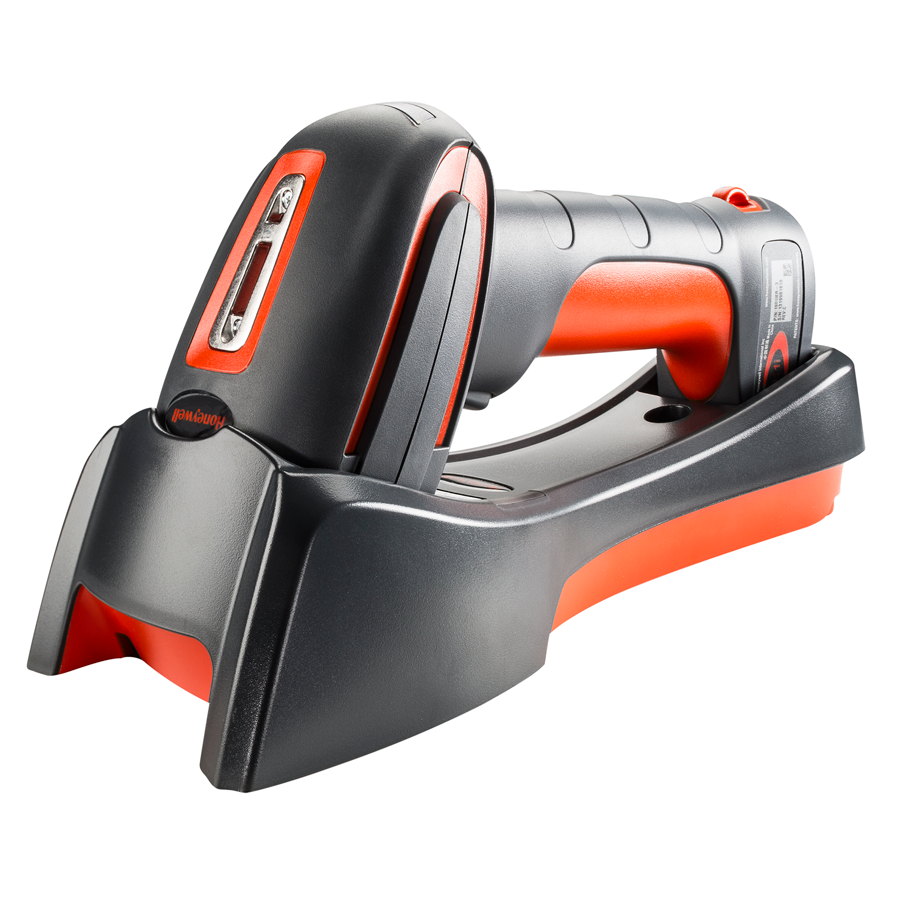

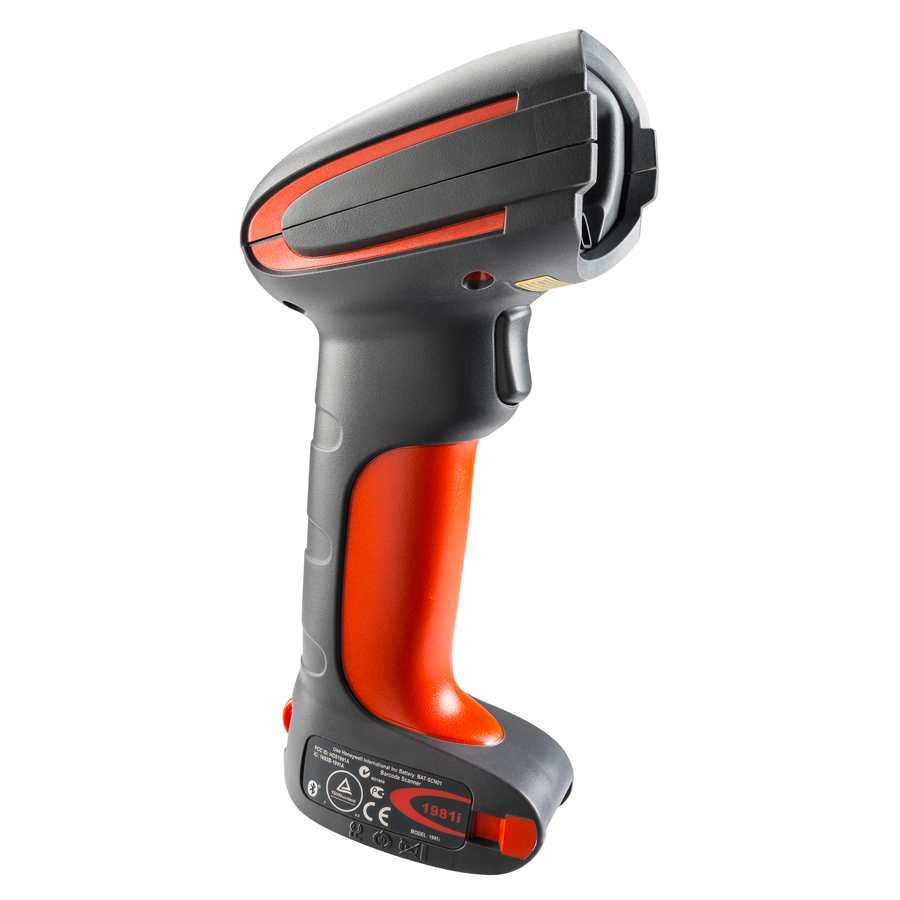

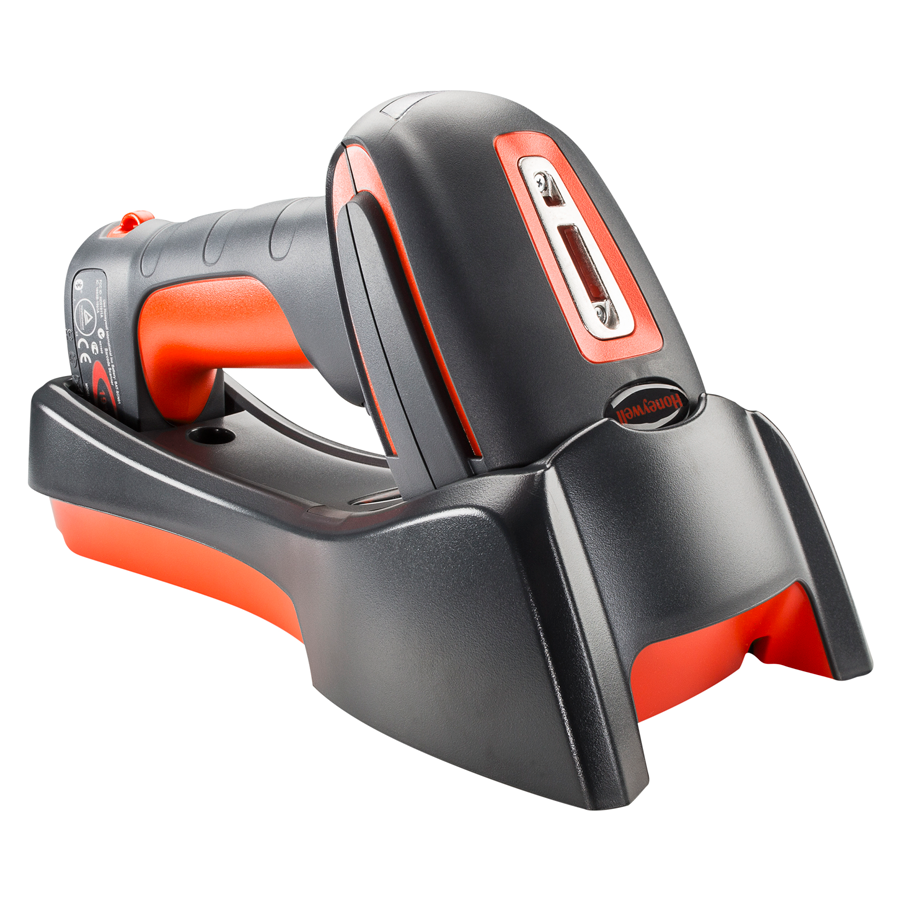

Scanner (1981iFR-3)
Dimensions (LxWxH)
133 mm x 75 mm x 195 mm (5.2” x 2.9” x 7.6”)
Weight:
420 g (14.8 oz)
Operating Power (Charging) :
N/A
Non-Charging Power:
N/A
Host System Interfaces:
N/A
Charger/Communication Base (CCB05-100BT-07N)
Dimensions (LxWxH)
250 mm x 103 mm x 65mm (9.9” x 4.1” x 2.6”)
Weight:
290 g (10.2 oz)
Operating Power (Charging) :
5 W (1A @ 5V)
Non-Charging Power:
0.6 W (0.12A @ 5 V)
Host System Interfaces:
USB, Keyboard Wedge, RS232 TTL
Environmental
Scanner (1981iFR-3)
Operating Temperature
-20°C to 50°C (-4°F to 122°F)
Storage Temperature with battery :
-40°C to 70°C (-40°F to 158°F)
Humidity:
0 to 95% relative humidity, non-condensing
Drop:
Designed to withstand 50 2 m (6.5’) drops to concrete at -20°C
Tumble :
5,000 1m (40˝) tumbles
Environmental Sealing :
IP65
Light Levels :
0 to 100,000 lux (9,290 foot-candles)
ESD :
±20Kv air discharge, ±8kV contact discharge
Charger/Communication Base (CCB05-100BT-07N)
Operating Temperature
-20°C to 50°C (-4°F to 122°F)
Storage Temperature with battery :
-40°C to 70°C (-40°F to 158°F)
Humidity:
0 to 95% relative humidity, non-condensing
Drop:
Designed to withstand 50 1.2 m (4’) drops to concrete at -20°C
Tumble :
5,000 1m (40˝) tumbles
Environmental Sealing :
IP51
Light Levels :
N/A
ESD :
±20Kv air discharge, ±8kV contact discharge
Scan Performance:
Scan Pattern:
Area Image
Scan Angle:
Horizontal: 12.9° Vertical: 8°
Symbol Contrast:
1D Codes: 30% minimum reflectance difference
2D Codes: 40% minimum reflectance difference
Min. Resolution:
1D & 2D Codes: 2 mil
Pitch, Skew:
70°, 80°
Warranty:
3 year factory warranty (Note: battery warranty is 1 year)
