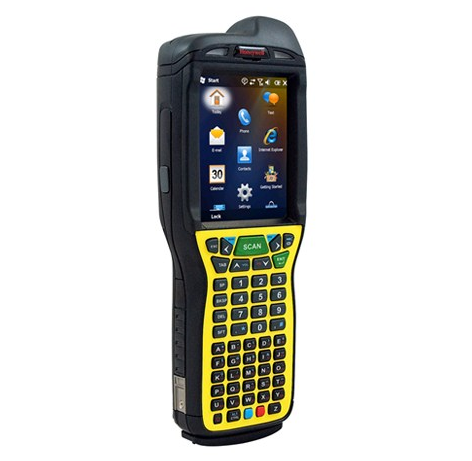

Dolphin® 99EXni
specification
Mechanical/Environmental
Dimensions 8.5" L x 2.7" W (keypad) x 1.8" (extended battery)
215 mm L x 69 mm W (keypad) x 45 mm (extended battery)
Weight Extended battery – 581g (20.5 oz)
Operating Temperature -4° to 122°F (-20° to 50°C)
Storage Temperature -13° to 158°F (-25° to 70°C)
Humidity 95% humidity, non-condensing
Drop Withstands multiple 6´ (1.8m) drops to concrete, all axis, and across operating temperature range
Tumble Exceeds 2,000 (1m) tumbles per IEC 60068-2-32 specification
Environmental Sealing Independently certified to meet IP67 standards for moisture and particle resistance
Hazardous Location
UL Listing (United States and Canada):
Class I, Division 2, Groups A, B, C, D
Class II, Division 2, Groups F, G
ATEX:
Ex II 3 G D Ex ic llC T6 Gc Ex ic IIIB T88°C Dc (ATEX Zone 2)
ESD Air: ±15 KV; Contact: ±8 KV
System Architecture
Processor Texas Instruments® OMAP3715 1.0GHz processor
Operating System Microsoft® Windows Embedded Handheld 6.5 Professional and Classic
Memory 1GB discrete NAND flash x 512 MB RAM
Display Chemically strengthened 3.7˝ transflective active matrix glass display, VGA (480x640), 333 nits
Touch Panel Industrial touch panel with resistive touch and support for finger touch and stylus
Keypad Backlit 55-key alphanumeric, 43-key alpha shifted numeric, 34-key numeric shifted alpha
Audio Speaker, HAC compliant receiver, microphone
Camera 3.1 megapixel camera with Automated Camera Control (ACC). Features include automated picture profiles,
camera Application Programming Interface (API), cooperational use of camera and imager, and flashlight utility
I/O Ports RS-232/USB 2.0/audio out/charging connector, integrated IrDA port with support for SIR mode
Storage Expansion MicroSD card (support for up to 32GB)
Battery Extended – Li-ion, 3.7V, 5000mAh
Battery Life Extended: 15.5 hours (scanning and sending data over WLAN every 9 seconds)
Extended: 14.75 hours (scanning and sending data over WWAN every 15 seconds, GPS continuously receiving information)
Imager/Scanner N5600/5603 Standard range (SR), Extended range (ER), and High Density (HD) imagers with high-visibility laser
or green LED aimer. All imagers have 25° angle and come equipped with Adaptus 6.0 Imaging Technology
Decode Capabilities Reads standard 1D and 2D symbologies
Development Environment Honeywell SDK for Windows® Embedded
Warranty 1 year factory warranty
Service Plans Optional three-and five-year Service Made Simple programs offer worry-free mobile computing
Wireless Connectivity
WWAN GSM (Voice and Data): 3.9G - HSPA+ (800/850/1900/1700/2100 MHz), GSM/GPRS/EDGE (850/900/1800/1900 MHz)
Software definable Gobi 3000 (data only): 3.9G – HSPA+/UMTS (800/850/900/1700/1900/2100MHz), GSM/GPRS/
EDGE (850/900/1800/1900MHz), EVDO Rev A - 1xRTT/EVDO (800/1900 MHz); support for dual SIM card
WLAN 802.11a/b/g/n, Wi-Fi™ - certified
WLAN Security WPA, WPA2 (Personal and Enterprise), 802.11x, EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2,
PEAPv1/EAP-GTC, WMM, CWG-RF Profile, CCX v.4, WAPI
WPAN Bluetooth® V2.1, support for enhanced data rate 2.0 Mbps & 3.0 Mbps rates class II
GPS Integrated Assisted GPS (A-GPS) with fast position acquisition and low power consumption
